Home > Product>ENGINE Generator

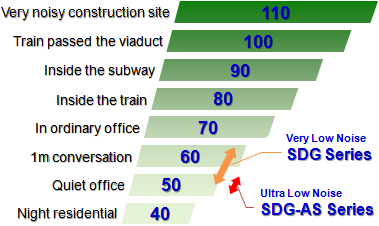

The noise and vibration control technology alone ensures that the AIRMAN generator can provide you with a quiet work and living environment. Is the Ministry of land and transportation of the "ultra low noise construction machinery" (200KVA) and the " low noise construction machinery" (300 ~ 610KVA) designated models.
The PVC (closed type exhaust system) is used to keep the engine clean.
The use of high quality and energy saving engine, the maximum reduce the burden on users, reduce the use of cost.

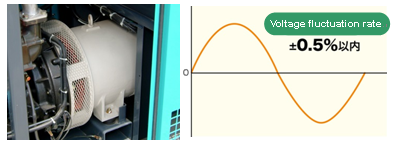

The high performance generator with voltage fluctuation of 0.5% and the rate of rotation speed of 5%.
Equipped with sufficient damping coil, voltage fluctuations in the small deformation, can be directly used as a variable frequency load, can be silicon rectifier, computer and confidential machinery, precision testing instrument for the use of power.
Switch the connection plate on the control panel, can be easily carried out by 200/220V 400 (380) /440V output voltage. Start the engine when the three-phase output voltage on the operation panel indicator lights, voltage is used at a glance
Can be easily connected to the external fuel tank for long time continuous operation. The new three conversion to single type valve, can achieve a two switch without fear of misuse.
Press the fuel oil control switch on the operation panel, and the air in the fuel circuit automatically discharged from the fuel circuit.
The high accuracy of the parallel operation system and the interaction between the cross flow prevention device and the automatic voltage regulation device can be conveniently realized by the parallel operation of multiple generators.
The electrical control system and control system of engine generator of components installed in the control panel configuration, fully operational and overall performance.
1 Panel light
2 Voltmeter
3 Ammeter
4 Frequency meter
5 Fuel gauge
6 Water temperature gauge
7 Three-phase breaker
8 Voltage regulator
9 Current meter switch
10 Leakage relay
11 Alarm indicator
12 200/220V、400/440V Indication lamp
13 Start switch
14 Panel light switch
15 Operation mode selection switch
16 Frequency switch
A door opening machine, it can be convenient for the oil, cooling water engine lubrication confirmation of daily inspection project.
The chassis of the lower part of the machine is designed with a flat plate structure, which is convenient for cleaning operations within the machine.
The end of a side plate on both sides of the plate and adopts structural design of assembly and disassembly is convenient, remove the end plate can conveniently check and clean the radiator.
The lower part of the fuel tank is a flat design, which is convenient to assemble and disassemble the fuel tank.
Active in the construction site of the portable engine generator
With a small deviation of high power generation performance, the voltage change rate of load change is controlled within 0.5%.
Standard configuration emergency stop device, leakage protection device.
As banks, hospitals, factories and other facilities, emergency standby power is widely used.
|
|
| SDG25S | SDG220S |
Model | Type | Rated Output kVA (50·60Hz) | Voltage V (50·60Hz) | Engine Brand Model |
|---|
| SDG13S | 超低噪音 Very Low | | 10.5 · 13 | 200/400 · 220/440 | 久保田 KUBOTA D1503 | ||||||
| SDG25S | 超低噪音 Very Low | | 20 · 25 | 200/400 · 220/440 | 久保田 KUBOTA V2403 | ||||||
| SDG45S | 超低噪音 Very Low | | 37 · 45 | 200/400 · 220/440 | 久保田 KUBOTA V3800 | ||||||
| SDG60S | 超低噪音 Very Low | 50 · 60 | 200/400 · 220/440 | 五十铃 ISUZU BJ-4JJ1X | |||||||
| SDG60L | 超低噪音 Very Low | | 50 · 60 | 200/400 · 220/440 | 五十铃 ISUZU BJ-4JJ1X | ||||||
| SDG100L | 超低噪音 Very Low | | 80 · 100 | 200/400 · 220/440 | 五十铃 ISUZU BI-4HK1X | ||||||
| SDG125L | 超低噪音 Very Low | | 100 · 125 | 200/400 · 220/440 | 五十铃 ISUZU BI-4HK1X | ||||||
| SDG150S | 超低噪音 Very Low | | 125 · 150 | 200/400 · 220/440 | 五十铃 ISUZU BH-6HK1X | ||||||
| SDG220L | 超低噪音 Very Low | | 200 · 220 | 200/400 · 220/440 | 五十铃 ISUZU BH-6UZ1X | ||||||
| SDG300L | 低噪音 Low | | 270 · 300 | 200/400 · 220/440 | 小松 KOMATSU SAA6D125E | ||||||
| SDG400L | 低噪音 Low | | 350 · 400 | 200/400 · 220/440 | 小松 KOMATSU SAA6D140E | ||||||
| SDG500S | 低噪音 Low | | 400 · 500 | 200/400 · 220/440 | 小松 KOMATSU SAA6D140E | ||||||
| SDG610S | 低噪音 Low | 555 · 610 | 200/400 · 220/440 | 小松 KOMATSU SA6D170 | |||||||
| SDG800S | 低噪音 Low | 700 · 800 | 200/400 · 220/440 | 小松 KOMATSU SAA6D170E |
With a small deviation of high power generation performance, the voltage change rate of load change is controlled within 0.5%.
Standard configuration emergency stop device, leakage protection device.
As banks, hospitals and other noise requirements of a high environmental emergency standby power is widely used.
|
|
| SDG25AS | SDG45AS |
Model | Type | Rated Output kVA (50·60Hz) | Voltage V (50·60Hz) | Engine Brand Model |
|---|
| SDG25AS | 极超低噪音 Ultra Low | | 20 · 25 | 200/400 · 220/440 | 久保田 KUBOTA V2403 | ||||||
| SDG45AS | 极超低噪音 Ultra Low | | 37 · 45 | 200/400 · 220/440 | 久保田 KUBOTA V3800 | ||||||
| SDG60AS | 极超低噪音 Ultra Low | | 50 · 60 | 200/400 · 220/440 | 五十鈴 ISUZU BJ-4JJ1X | ||||||
| SDG100AS | 极超低噪音 Ultra Low | | 80 · 100 | 200/400 · 220/440 | 五十鈴 ISUZU BI-4HK1X | ||||||
| SDG150AS | 极超低噪音 Ultra Low | | 125 · 150 | 200/400 · 220/440 | 五十铃 ISUZU BH-6HK1X |
Can maintain long time continuous operation
Do not need to connect to the external tank, in line with Japan's "electrical equipment technology benchmark" in the "non - monitoring power generation facilities" requirements.
Standard configuration of the large capacity of the fuel tank, even without the external tank can be a long time to run.
Double base Water Leakage, anti leakage, leak proof and configuration of automatic alarm device.
NETIS login product. (login ID: KT-090071, new technology Name: double base oil tank of a type of generator)
|
|
| SDG25LX | SDG150LX |
Model | Type | Rated Output kVA (50·60Hz) | Voltage V (50·60Hz) | Engine Brand Model |
|---|
| SDG13LX | 超低噪音 Very Low | 10.5 · 13 | 200/400 · 220/440 | 久保田 KUBOTA D1503 | |||||||
| SDG25LX | 超低噪音 Very Low | 20 · 25 | 200/400 · 220/440 | 久保田 KUBOTA V2403 | |||||||
| SDG45LX | 超低噪音 Very Low | 37 · 45 | 200/400 · 220/440 | 久保田 KUBOTA V3800 | |||||||
| SDG60LX | 超低噪音 Very Low | 50 · 60 | 200/400 · 220/440 | 五十铃 ISUZU BJ-4JJ1X | |||||||
| SDG100LX | 超低噪音 Very Low | 80 · 100 | 200/400 · 220/440 | 五十铃 ISUZU BI-4HK1X | |||||||
| SDG125LX | 超低噪音 Very Low | 100 · 125 | 200/400 · 220/440 | 五十铃 ISUZU BI-4HK1X |
